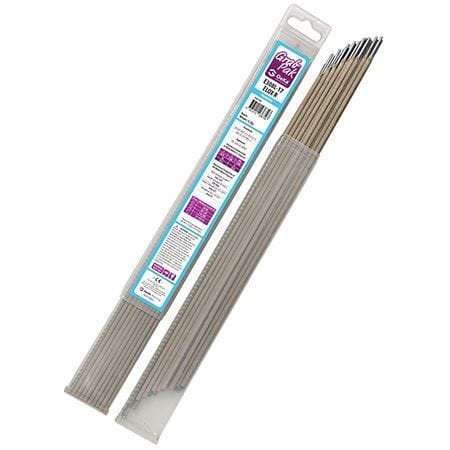

GrabPak – 312-17 ELOX R Electrodes (3.2mm) 0.5kg – STAINLESS – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)

Description

GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.



Stainless steel electrode suitable for welding dissimilar steels, also used for tough buffer layers in hard surfacing where hot and warm deformation exist and takes place.



Features and Applications

Unalloyed and low alloyed hard to weld steels with higher carbon content as well as heat treatable steels and tool steels, Mn steels, joining dissimilar steels, used for tough buffer layers in hard surfacing where hot and warm deformation exist are take place

Requirement of re-drying for min. 2 hours at temperatures of 300°C

Uses in welding of Chromium/Manganese steels tools steels, unalloyed and alloyed high-strength steels



Typical Base Material Grades

Uses in welding of Chromium-/Manganese-steels, tool steels, unalloyed and alloyed high-strength steels.



Standards	Current Type
EN ISO 3581-A – E Z 29 9 R 12	D.C. (+) / A.C.
AWS A5.4 – E 312-17



Chemical Composition of Weld Metal % (Typical)
C	Si	Mn	Ni	Cr
0.12	1.0	0.8	9.5	29.0



Mechanical Properties
Yield Strength (N/mm2)	Tensile Strength (N/mm2)	Impact Strength (ISO-V/+20ºC)	Elongation (Lo=5do)(%)
min. 490	600 – 800	min. 24 J	min. 20



Welding Positions



Operating Data
Diameter x Length (mm)	Welding Current (A)	Package Weight (Kg)	No. Pieces Approx
2.50 x 250 3.20 x 350	60 – 80 80 – 110	0.5 0.5	TBC TBC

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
