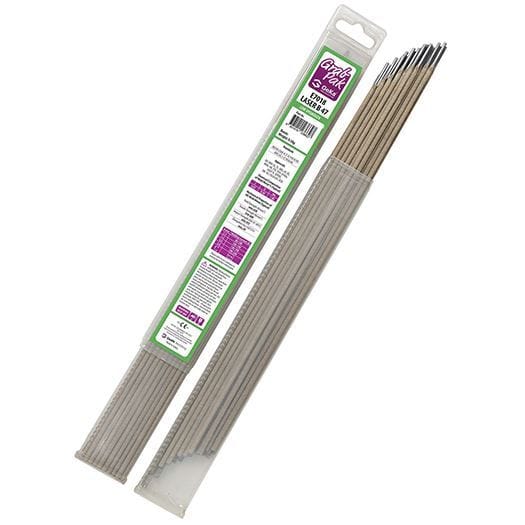

GrabPak – 7018 LASERB 47 Electrodes (3.2mm) 0.5kg – low hydrogen – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)
£15.18
Description
GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.
The GeKa LASER B47 electrode is suitable for out of position welding. Excellent strength and toughness for use in various industry fields. Weld deposits with very low hydrogen content and metal recovery of 120%.
Features and Applications
Suitable for use in out of position welding except for welding in vertical down position
Excellent strength and toughness
Suitable for use in the fields of steel constructions, boiler, container, machine manufacturing and shipbuilding as well as for use in welding low purity and high-carbon steels
Suitable for the formation of welding buffer layers when building up high carbon steels
Weld deposits with very low hydrogen content
Weld metal recovery of about 120%
Requirement of re-drying for minimum 2 hours at temperatures between 300°C & 350°C
Typical Base Material Grades
S235JR-E295, E335, S235J2G3-S355J2G3, C22, C35, P235T1-P355T1, P235T2,P355T2, L210-L360, L290MB-L360MB, P235G1TH, P255G1TH, P235GH-P295GH, S235JRS1- S235J4S, S315G1S-S355G3S, S255N-S355N, P255NH-P355NH, S255NL-S355NL, GE200-GE300
API 5L: A, B, X42, X46, X52, X56, X60
| Standards | Current Type |
| EN ISO 2560-A – E 42 4 B 42 H5 | D.C. (+) / A.C. |
| AWS A5.1 – E7018-H4 |
| Chemical Composition of Weld Metal % (Typical) | |||
| C | Si | Mn | |
| 0.07 | 0.5 | 1.0 | |
| Mechanical Properties | |||
| Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Impact Strength (ISO-V/-40ºC) |
Elongation (Lo=5do)(%) |
| min. 420 | 510 – 600 | min. 47 J | min. 24 |
Welding Positions
| Operating Data | |||
| Diameter x Length (mm) | Welding Current (A) | Package Weight (Kg) |
No. Pieces Approx |
| 2.50 x 350
3.20 x 350 |
80 – 100
100 – 140 |
0.5
0.5 |
13
13 |
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
