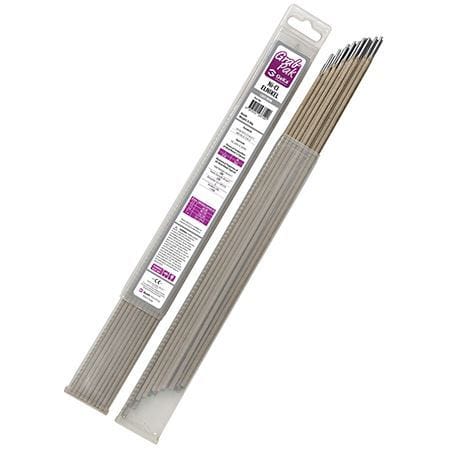

GrabPak – Ni-Cl ELNIKEL Electrodes (3.2mm) 0.5kg – CAST IRON – free delivery (England, Scotland & Wales excluding Scottish Highlands and Islands)
£47.54
Description
GrabPak is a handy and convenient way of supplying customers with just the right amount of electrodes for any small jobs in the home or workplace. Designed to increase sales through the presentation of our popular welding consumables in a rotating stand with full colour coded 0.5kg packaging.
Ni cored stick electrode for welding grey cast iron, temper cast iron, nodular cast iron and cast iron to steel. Best for welding in short passes.
Features and Applications
Joint welding of grey cast iron, temper cast iron, nodular cast iron as well as joint welding of cast iron with steel, stainless steel and Monel metal
Ni cored stick electrode
Welding in short passes, and gently striking the bead of each pass with a hammer when the bead is hot is required
| Standards | Current Type |
| TS 9463 / EN ISO 1071 E C Ni-CI 1 | D.C.(-) / A.C. |
| AWS A5.15 – E Ni-CI |
| Chemical Composition of Weld Metal % (Typical) | |||||
| C | Ni | ||||
| 0.5 | Rest | ||||
| Mechanical Properties | |||
| Yield Strength (N/mm2) |
Tensile Strength (N/mm2) |
Elongation (Lo=5do)(%) |
Hardness (HB) |
| 200 | 250 | 3 | 170 |
Welding Positions
| Operating Data | |||
| Diameter x Length (mm) | Welding Current (A) | Package Weight (Kg) |
No. Pieces Approx |
| 2.50 x 300
3.20 x 300 |
60 – 90
90 – 110 |
0.5
0.5 |
29
19 |
Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained. This information is subject to change without notice and can be only considered as suitable for general guidance.
